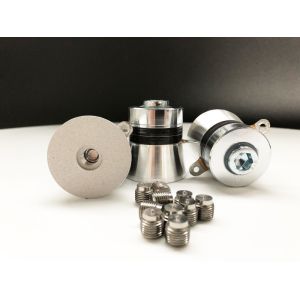

piezoelectric transducer vibration ultrasonic cleaning transducer 28khz

The static clamping capacitance of the ultrasonic transducer will change with the change of temperature when the ultrasonic transducer is running. Because of the change of clamping capacitance, the original matching network parameters will change, and the change of temperature is difficult to predict. Therefore, the change of clamping capacitance will lead to the decrease of static matching, and the corresponding matching network parameters may be affected by the influence of static capacitance. A method of on-line monitoring the change of clamping capacitance is provided, which can effectively detect the static capacitance of the ultrasonic transducer during the operation of the ultrasonic transducer. A dynamic matching method is proposed. Firstly, the coupling model of inductance and the ultrasonic transducer is established, and the relationship between inductance and working frequency is obtained by the coupling model, which can be controlled when the working frequency changes. The DC input of the reactor changes the magnetic flux of the cross section to adjust the inductance of the reactor.

For the safe and efficient operation of transducer, matching network is particularly important for the work of ultrasonic transducer. At present, matching methods include static matching and dynamic matching. Because static matching is the most widely used method at present, static matching mainly includes series inductance matching, parallel matching and impedance transformation matching. However, L-C matching is a common and effective matching method in industry. In the development of high-power ultrasound equipment, electrical matching is a complex and important work.

Payment Methods:

1.Prepaid by Bank

2.T/T

3.West Union

piezoelectric transducer vibration ultrasonic cleaning transducer 28khz

Ours Ultrasonic Co.,Ltd

Ours Ultrasonic Co.,Ltd was established in 2009 .Registered capital of 3 million.Our Plant located at Shenzhen ,China More than 2,000 square meters . The company employs 100-150 people, including 10 technicians and 15 international and domestic sellers. Ultrasonic digital generator and PCBs . monthly production is 1000-3000 units, and ultrasonic cleaning and welding transducer 200,000pcs,ultrasonic immersible pack about monthly 20,000 sets.

At OURS ULTRASONIC ,We specially made an easy high power ultrasonic way ,We are manufacturer of Ultrasonic generator for cleaning and welding ,Ultrasonic transducer for cleaning,welding and powder vibration . Ultrasonic immersible transducer pack and cleaning machine ,Piezoelectric ceramic &ultrasonic equipment.

Our vision:High power ultrasonic is our main service purpose,the products what we offered are the best quality with best price,also excellent sale service for you always.

Meet in OURS ULTRASONIC:We are committed to the transmission of industrial ultrasonic to all parts of the world.OURS Ultrasound products all over the world.

Working at OURS ULTRASONIC:Professional ultrasonic technology service.Provide the best pre-sale ,Sales service,and after sales service.

Living in OURS ULTRASONIC:We are committed to expanding ultrasound products.Making OURS Ultrasonic Products being an important Part of Everyday Life.

We exported to Europe,America,Asia, Oceania,even Africa. such as Italy, Slovakia,Netherlands,France,Germany, Russia，Croatia, Slovenia, Switzerland, Portugal,USA, Canada,Mexico,Brazil, Ireland, Philippines,India,Malaysia, Indonesia,South Africa,etc.

We Trust that Ours Ultrasonic company will be come true the world wide brand name in near future and your support is most importance and positive for us,Let’s go for Ultrasonic Industry!
